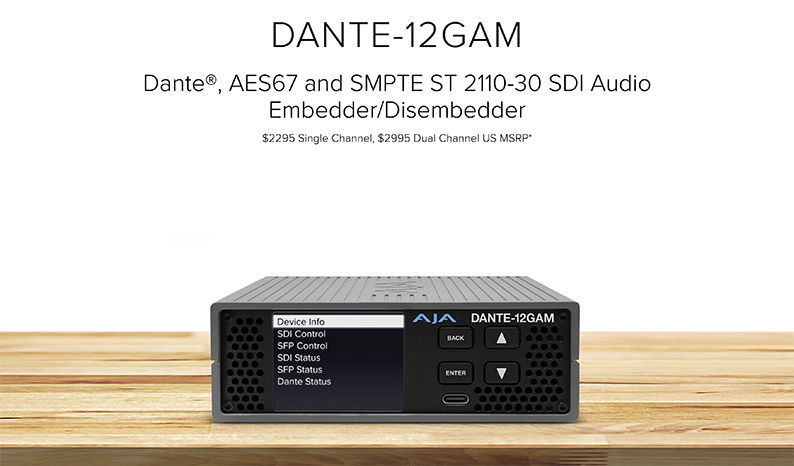

Dante®, AES67 and SMPTE ST 2110-30 SDI Audio Embedder/Disembedder

DANTE-12GAM

Dante®, AES67 and SMPTE ST 2110-30 SDI Audio Embedder/Disembedder

DANTE-12GAM

Overview

The DANTE-12GAM is a high performance Audio over IP (AoIP) Converter, embedding and disembedding SDI audio to a Dante network and back to SDI from Dante audio. Equipped with 12G-SDI input and output and dual etherCON GigE ports, the DANTE-12GAM is capable of simultaneously embedding and disembedding up to 16* channels of audio in and out for a total of 32* audio channels in a compact device.

The DANTE-12GAM is your portal to a vast array of IP audio solutions. Dante networks not only support the Dante audio streams but also support AES67 and SMPTE ST 2110-30 AoIP, providing massive flexibility for all your IP audio needs.

DANTE-12GAM is available with a single channel 12G-SDI input and output, or as two dual channel options: DANTE-12GAM-TR-LC (with LC Fiber SFP) or DANTE-12GAM-TR-BNC (with BNC SFP), which support a total of up to 64 channels of Dante® audio in a compact Mini-Converter form factor. The single channel can be upgraded to the dual channel version at any time via an optional license and the addition of either the BNC or LC Fiber SFP.

No matter the configuration you choose, you can rely on AJA’s legendary build quality and support to give you peace of mind whether you're an individual creator or broadcasting the largest live events.

*up to 64 channels of audio with the dual channel option/upgrade.

DANTE-12GAM Overview Video

DANTE-12GAM bridges the gap between SDI and IP audio ecosystems. Watch this video to learn about DANTE-12GAM's numerous benefits and advantages for seamlessly integrating Dante, AES-67, and SMPTE IP audio with professional SDI infrastructure and workflows.

Watch Video

DANTE-12GAM Features

• Support for 12G/6G/3G/1.5G SDI audio embedding/disembedding to and from the Dante audio ecosystem

• Single video channel with independent 12G-SDI Input and Output ports, each supporting 16 audio channels, totaling 32 channels of Dante audio in a compact, portable design

• PTPv2, SMPTE ST 2110-30, AES67 compatible

• 1x Primary and 1x Secondary etherCON GigE ports for Dante network redundancy

• PoE+ on Primary Ethernet simplifying wiring

• Internal SDI signal generator, which enables transmitting Dante audio channels over SDI without having an external SDI source signal

• AJA Web UI support for remote signal status and configuration

• USB-C port for initial Static IP configuration using free AJA eMini-Setup software

• Front-panel LCD information and configuration screen

• 4x Physical control buttons (Back, Enter, Up, Down)

• Upgradable to second video channel via additional SFP and license, expanding support to up to 64-channels

• 12V, 60W Power Supply Included

• Five-year warranty

Connectivity

The DANTE-12GAM converter offers the power and flexibility of professional connectivity to plug and play into your existing SDI and Dante audio infrastructures.

DANTE-12GAM-TR-LC

All of the DANTE-12GAM features with the addition of:

• Dual video channels with independent 12G-SDI Input and Output fiber LC connectors, each supporting 16 audio channels, totaling 64 Dante audio channels in a compact design

• 1x Dual LC 12G Fiber Transceiver SFP

• 2x Internal Signal Generators, which enable transmitting Dante audio channels over SDI without having an external SDI source signal




DANTE-12GAM-TR-BNC

All of the DANTE-12GAM features with the addition of:

• Dual video channels with independent 12G-SDI BNC Input and Output ports, each supporting 16 audio channels, totaling 64 Dante audio channels in a compact design

• 1x Dual BNC 12G Coax Transceiver SFP

• 2x Internal Signal Generators which enable transmitting Dante audio channels over SDI without having an external SDI source signal

SFP Options

Post-sale, you can also upgrade the base unit to a dual channel version at any time by purchasing an optional license and adding either the BNC or LC Fiber SFP.

DANTE-12GAM Video SFP software upgrade License ($199 US MSRP)

Click here to purchase a license

FIBERLC-TR-12G SFP ($559 US MSRP)*

BNC-TR-12G SFP ($559 US MSRP)*

*Available to purchase via your local reseller.

Dante: The Audio Networking Standard for the Pro AV Industry and Beyond

Dante audio is the primary choice for ProAV system integrators and a growing number of broadcasters. It is widely adopted by over 600 manufacturers offering 4000+ Dante device types. Dante IP audio networking provides digital audio distribution over local and wide area networking with very low latency (<1 ms), using standard network hardware or connecting into a standard network infrastructure. This offers many advantages, including audio system scalability, ease of installation, and maintenance.

..........................
